How To Install Lattice For Vines
Most Lattice
A wood lattice consists of diagonal or vertical and horizontal strips of wood (laths) cris-crossing to make a grille like pattern.
Lattice is suitable for trellis or as decorative sections in fences, handrails, arbors, pergolas, garden or deck privacy screens, windbreaks etc.
The ii nearly common lattice profiles are diagonal and square. (more than caption below)
Lattice section sizes (panels) tin be cutting to social club past manufacturers or ready made panels can be purchased at nigh building supply stores. Typical sail sizes are 600mm (2ft) x 2400mm (8ft) and 1200mm (4ft) ten 2400mm (8ft).
Diagonal lattice
Diagonal lattice for outside use is made up of natural disuse resistant or treated forest strips (laths) running opposite means and fixed together with (unremarkably) stainless staples.
The laths tin can vary in size merely mostly range between 6mm (7/32″) thick to 12mm (ane/ii″) thick and between 12mm (1/2″) wide to 50mm (2″) wide.
The gaps betwixt the laths can also vary profoundly in size and usually depends on what the lattice is used for (privacy, windscreen, to support plants, vines etc.).
Gaps tin can also vary within the aforementioned section as shown infig.2
Square lattice
The construction of square lattice is the same as that of diagonal lattice except the woods strips (laths) run vertical and horizontal rather than diagonal.
Lattice stops
The stops are the strips of wood that are used to agree the lattice in place and are stock-still to the rails and posts.
25mm x 25mm (1″x1″) foursquare stops are common, merely other sizes and shapes tin can exist used.
Stops are an alternative to using grooved U mold (likewise called capping or C mold)
U mould (capping)
U mold is a grooved capping that fits around the perimeter of a lattice section or panel and gives a cracking movie frame advent.
The groove in the capping is the same width (or slightly bigger) than the thickness of the lattice.
How to fit lattice into a frame
The Frame
- The lattice frame unremarkably consists of uprights (posts) and superlative and bottom plates.
- The uprights, in a lot of cases are posts either concreted into the ground or bolted to another structure such as a deck or retaining wall.
- An upright may be a post for a argue, a pergola, an arbor, a screen, among other things. Ordinarily a post is either 100×100 (iv×4) or larger in size and can be either smooth (dressed) or rough (crude sawn).
- The plates are the completion of the lattice frame and run horizontal betwixt the posts, 1 at the top (top plate) and one at the bottom (bottom plate).
- The plates are usually 100×50 (ii×4) or larger . The plates tin be a bigger size specially if the span is greater than 1800mm (6ft) although information technology is not appropriate to have a lattice frame section spanning more than than 1800mm (6ft).
Fitting the Lattice:
Notes
Lattice panel can be cut to gild or purchased in ready fabricated panels in sizes such as 600mm (2ft) x 2400mm (8ft) or 1200mm (4ft) x 2400mm (8ft).
Utilize natural decay resistant or treated wood and galvanized nails.
Measuring the lattice
- Mensurate betwixt the top and center rail and between the 2 posts in each section and deduct 5mm (1/four″) from the measurement to permit for play. For example, if the exact measured size of a detail section is 2200mm (88″) wide 10 250mm (10″) high, so the lattice size for that section would need to exist 2195mm (87 3/iv″) wide x 245mm (ix iii/iv″) high.
- Measure the aforementioned way in every section and order the lattice of your selected profile or buy pre-made panels and cut to suit.
Fitting the Lattice

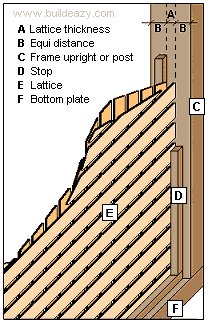

The objective is to sandwich the lattice between two pieces of wood (stops) that are fixed to the posts and track.
25mm ten 25mm (1″x1″) foursquare stops are used in this example.
- Firstly, fix the stops around the inside of the frame to one side only.
- Insert the lattice.
- Ready the stops against the lattice on the other side (see drawing).
